solar POWER SYSTEM
“THE SOLAR ELECTRIC SYSTEM AT THE HOPE CENTRE IS 100% OFF GRID.”
— KERRY GHENT
fun facts:
System 1
Powers
Birth Place
Batteries
16x 200AH/12v
Panels
12x STP-325w/12v
Capacity
5500W/230VAC

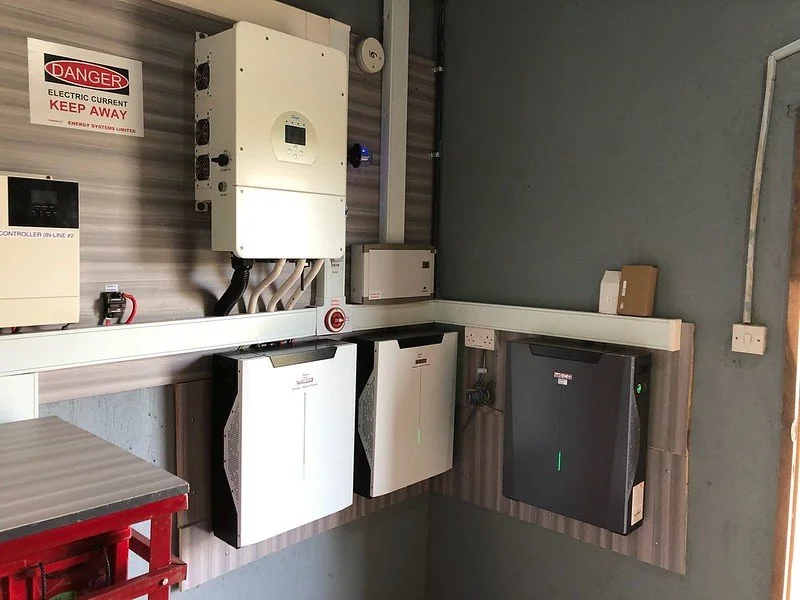

System 2
Powers
Banda & Pavillion
Batteries
3x 5.3 KWH Lithium
Panels
7x AFR-375w +
2x AFR-375w/24v &
6x STP 350 Modules
Capacity
8000W/230VAC
System 3
Powers
Water Pumps
Batteries
8x 200AH/12v
Panels
6x Astro 450w/24v
Capacity
5500W/230VAC
Built and designed by David Sekalegga at Energy Systems Limited
There are three AC systems, and four small DC systems

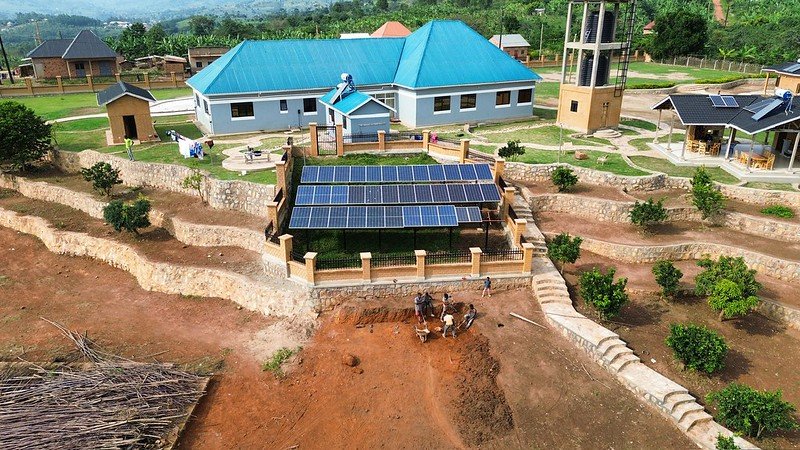

The Photovoltaic (PV) field has 34 solar panels

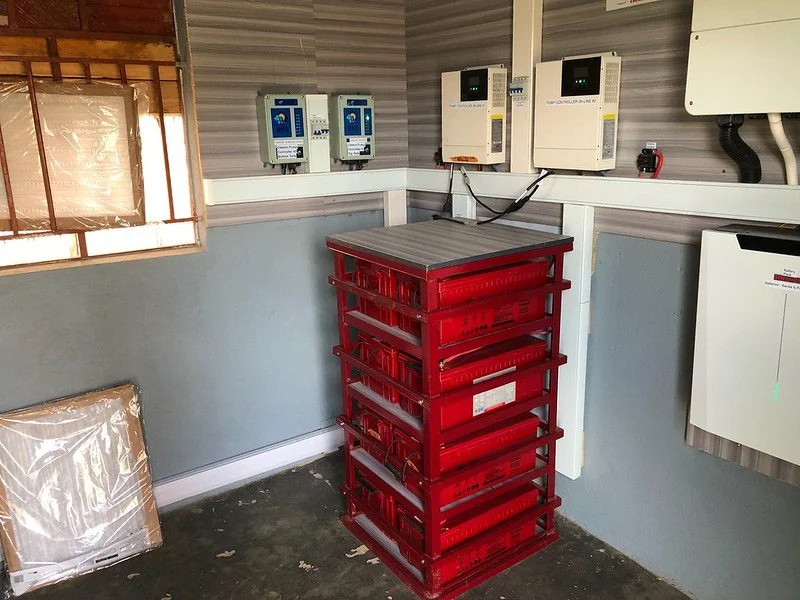

The Centre uses both deep cell acid batteries and lithium LFP batteries
The very first system caught fire and was destroyed
A generator was added as emergency back up power
Inverters are used to transform the power from DC (from the solar panels) to AC used by most electrical items
